INDOOR WIRES

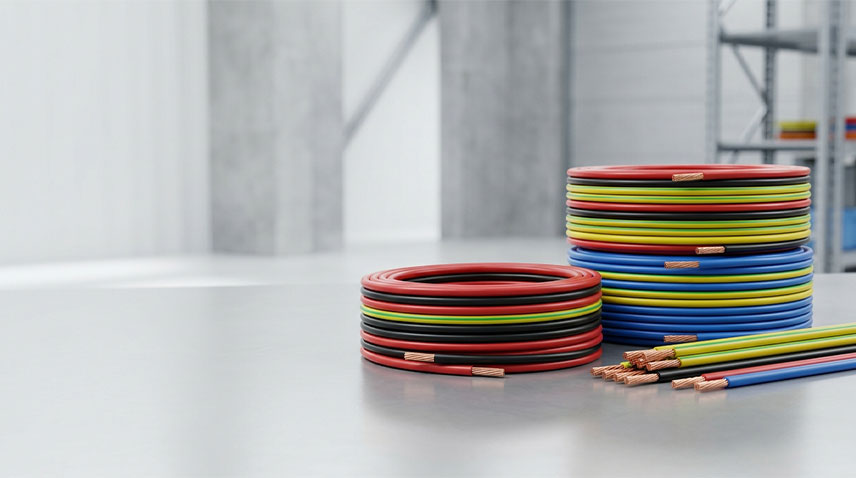

450/720 V Indoor Wires

Single Core Cables with Stranded Copper Conductors and PVC Insulated

Voltage Rating 450/720 V

PRODUCT INFORMATION

Construction Single Core Cables

Conductor Stranded Copper Conductors

Insulation PVC Insulated

Conductor Type Soft Annealed

Temperature 70 C or 90 C

Installation Indoor Fixed Installations

Environment Dry Locations

Installation Method Laid in Conduits / Steel Support Brackets

TECHNICAL SPECIFICATIONS

Nominal Core Sectional Area (mm²)	Temperature	Current Rating in Air (A)	Free In Pipes (A)	Number of Cores × Number of Wires
1.5	70-90	20	15	1*1
2	70-90	22	17	1*1
2.5	70-90	28	22	1*1
3	70-90	31	24	1*7
4	70-90	37	26	1*7
6	70-90	46	33	1*7
10	70-90	66	47	1*7
16	70-90	87	62	1*7
25	70-90	118	81	1*19
35	70-90	147	100	1*19
50	70-90	197	122	1*19
70	70-90	230	151	1*19
95	70-90	289	191	1*19
120	70-90	337	219	1*37
150	70-90	385	252	1*37
185	70-90	449	288	1*37
240	70-90	542	345	1*61
300	70-90	621	391	1*61

APPLICATIONS

Suitable for indoor fixed installations in dry locations, laid in conduits or on steel support brackets.

Suitable for indoor fixed installations.

Designed for installation in dry locations.

Laid in conduits or on steel support brackets.

Installation Environment Dry Locations
